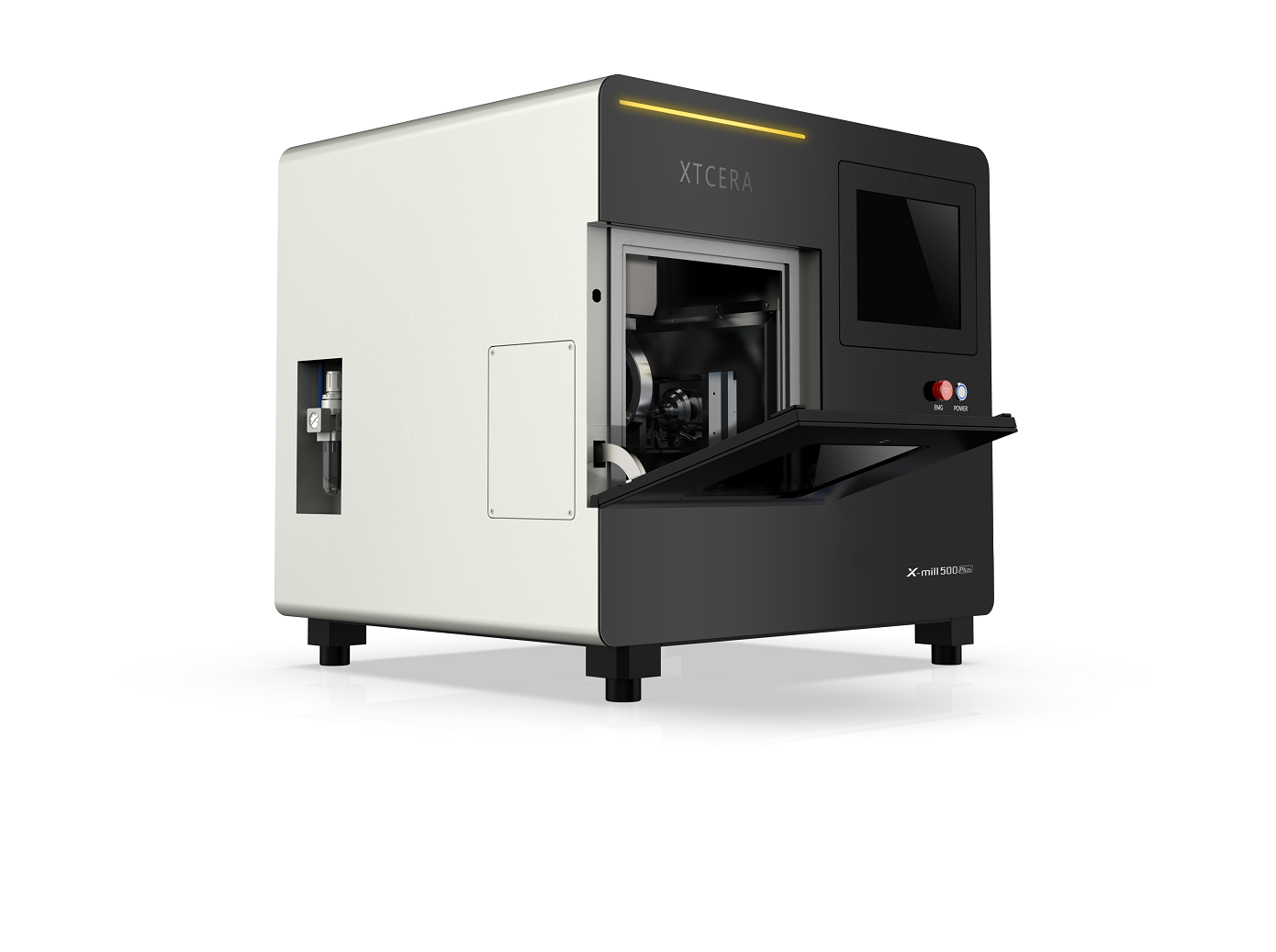

XMill 500 (XMill 500 Plus) 5-AXIS milling machine
Xtcera
XMill 500 (XMill 500 Plus)
Advanced 5 axis milling
Auto-calibration function simplify the whole work flow.
90° facial milling strategy makes the detail milling more convenient.
High speed, high precision machining
Technical Data
| Name | XMill 500 (XMill 500 Plus) |
| Dimension | 630x730x700 (mm) |
| Net weight | 197 kg |
| Input voltage | AC 220V |
| Spindle power | 1.8 kw |
| Axis quantity | 5 |
| Milling range | XYZ: 110/160/80mm A: ±30° B: 360° |
| Milling mode | Dry milling |
| Max speed | 60,000 rpm |
| Max feeding speed | XYZ: 6000 mm/min |
| Bur capacity | 8 |
| Bur changing | Automatic |
| Cooling | Water cooling |
| Materials | zirconia, wax, acril, alluminium , soft metal |
